Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker
| Name | Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker |
|---|---|
| Supplier | Abcam |
| Catalog | ab14748 |
| Prices | $404.00 |
| Sizes | 100 µg |
| Host | Mouse |
| Clonality | Monoclonal |
| Isotype | IgG2b |
| Clone | 15H4C4 |
| Applications | WB ICC/IF IP IHC-P ICC/IF ICC/IF FC |
| Species Reactivities | Mouse, Rat, Bovine, Human, C. elegans, Drosophila, Monkey |
| Antigen | Purified mitochondrial Complex V (Cow) |
| Description | Mouse Monoclonal |
| Gene | ATP5A1 |
| Conjugate | Unconjugated |
| Supplier Page | Shop |
Product images
![All lanes : Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker (ab14748) at 1 µg/mlLane 1 : Isolated mitochondria from human heart at 10 µgLane 2 : Isolated mitochondria from bovine heart at 4 µgLane 3 : Isolated mitochondria from rat heart at 10 µgLane 4 : Isolated mitochondria from mouse heart at 10 µgLane 5 : HepG2 lysate at 20 µg](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/11035_ATP5A-Primary-antibodies-ab14748-12.jpg)
All lanes : Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker (ab14748) at 1 µg/mlLane 1 : Isolated mitochondria from human heart at 10 µgLane 2 : Isolated mitochondria from bovine heart at 4 µgLane 3 : Isolated mitochondria from rat heart at 10 µgLane 4 : Isolated mitochondria from mouse heart at 10 µgLane 5 : HepG2 lysate at 20 µg
![All lanes : Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker (ab14748) at 1 µg/mlLane 1 : Liver (Human) Tissue Lysate - adult normal tissue (ab29889)Lane 2 : HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate Lysates/proteins at 10 µg per lane.SecondaryGoat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutionObserved band size : 55 kDa (why is the actual band size different from the predicted?)Additional bands at : 36 kDa. We are unsure as to the identity of these extra bands.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/11036_ATP5A-Primary-antibodies-ab14748-2.jpg)
All lanes : Anti-ATP5A antibody [15H4C4] - Mitochondrial Marker (ab14748) at 1 µg/mlLane 1 : Liver (Human) Tissue Lysate - adult normal tissue (ab29889)Lane 2 : HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate Lysates/proteins at 10 µg per lane.SecondaryGoat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutionObserved band size : 55 kDa (why is the actual band size different from the predicted?)Additional bands at : 36 kDa. We are unsure as to the identity of these extra bands.
ab14748 (1µg/ml) staining ATP5A in human heart (left ventricle), using an automated system (DAKO Autostainer Plus). Using this protocol there is mitochondrial staining of cardiomyocytes.Sections were rehydrated and antigen retrieved with the Dako 3 in 1 AR buffer citrate pH6.1 in a DAKO PT link. Slides were peroxidase blocked in 3% H2O2 in methanol for 10 mins. They were then blocked with Dako Protein block for 10 minutes (containing casein 0.25% in PBS) then incubated with primary antibody for 20 min and detected with Dako envision flex amplification kit for 30 minutes. Colorimetric detection was completed with Diaminobenzidine for 5 minutes. Slides were counterstained with Haematoxylin and coverslipped under DePeX. Please note that, for manual staining, optimization of primary antibody concentration and incubation time is recommended. Signal amplification may be required.
ab14748 staining ATP5A in MDA MB 231 cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with formaldehyde, permeabilized with 1% Triton X-100 and blocked with 10% BSA for 1 hour at 21°C. Samples were incubated with primary antibody (1/100 in BSA + 0.02% Tween 20) for 1 hour at 21°C. A DyLight® 550-conjugated goat anti-mouse IgG polyclonal (1/500) was used as the secondary antibody.See Abreview
ICC/IF image of ab14748 stained MCF7 cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab14748, 10µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.
![Overlay histogram showing HepG2 cells stained with ab14748 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab14748, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG2b [PLPV219] (ab91366, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HepG2 cells fixed with 80% methanol (5 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/11040_ATP5A-Primary-antibodies-ab14748-9.jpg)

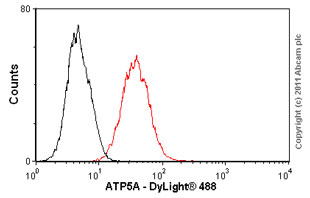

Overlay histogram showing HepG2 cells stained with ab14748 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab14748, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG2b [PLPV219] (ab91366, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HepG2 cells fixed with 80% methanol (5 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.
Product References
Green tea epigallocatechin gallate binds to and inhibits respiratory complexes in - Green tea epigallocatechin gallate binds to and inhibits respiratory complexes in
Weng Z, Zhou P, Salminen WF, Yang X, Harrill AH, Cao Z, Mattes WB, Mendrick DL, Shi Q. Biochem Biophys Res Commun. 2014 Jan 17;443(3):1097-104. doi:
GCN5-like protein 1 (GCN5L1) controls mitochondrial content through coordinated - GCN5-like protein 1 (GCN5L1) controls mitochondrial content through coordinated
Scott I, Webster BR, Chan CK, Okonkwo JU, Han K, Sack MN. J Biol Chem. 2014 Jan 31;289(5):2864-72.
Metabolic enzyme expression highlights a key role for MTHFD2 and the - Metabolic enzyme expression highlights a key role for MTHFD2 and the
Nilsson R, Jain M, Madhusudhan N, Sheppard NG, Strittmatter L, Kampf C, Huang J, Asplund A, Mootha VK. Nat Commun. 2014;5:3128.
Autophagy signaling in skeletal muscle of infarcted rats. - Autophagy signaling in skeletal muscle of infarcted rats.
Jannig PR, Moreira JB, Bechara LR, Bozi LH, Bacurau AV, Monteiro AW, Dourado PM, Wisloff U, Brum PC. PLoS One. 2014 Jan 10;9(1):e85820.
A novel fizzy/Cdc20-dependent mechanism suppresses necrosis in neural stem cells. - A novel fizzy/Cdc20-dependent mechanism suppresses necrosis in neural stem cells.
Kuang C, Golden KL, Simon CR, Damrath J, Buttitta L, Gamble CE, Lee CY. Development. 2014 Apr;141(7):1453-64.
Acidosis overrides oxygen deprivation to maintain mitochondrial function and cell - Acidosis overrides oxygen deprivation to maintain mitochondrial function and cell
Khacho M, Tarabay M, Patten D, Khacho P, MacLaurin JG, Guadagno J, Bergeron R, Cregan SP, Harper ME, Park DS, Slack RS. Nat Commun. 2014 Apr 1;5:3550.
CLYBL is a polymorphic human enzyme with malate synthase and beta-methylmalate - CLYBL is a polymorphic human enzyme with malate synthase and beta-methylmalate
Strittmatter L, Li Y, Nakatsuka NJ, Calvo SE, Grabarek Z, Mootha VK. Hum Mol Genet. 2014 May 1;23(9):2313-23.
PINK1-mediated phosphorylation of Parkin boosts Parkin activity in Drosophila. - PINK1-mediated phosphorylation of Parkin boosts Parkin activity in Drosophila.
Shiba-Fukushima K, Inoshita T, Hattori N, Imai Y. PLoS Genet. 2014 Jun 5;10(6):e1004391.
An uncoupling channel within the c-subunit ring of the F1FO ATP synthase is the - An uncoupling channel within the c-subunit ring of the F1FO ATP synthase is the
Alavian KN, Beutner G, Lazrove E, Sacchetti S, Park HA, Licznerski P, Li H, Nabili P, Hockensmith K, Graham M, Porter GA Jr, Jonas EA. Proc Natl Acad Sci U S A. 2014 Jul 22;111(29):10580-5. doi:
Drosophila Syd-1, liprin-alpha, and protein phosphatase 2A B' subunit Wrd - Drosophila Syd-1, liprin-alpha, and protein phosphatase 2A B' subunit Wrd
Li L, Tian X, Zhu M, Bulgari D, Bohme MA, Goettfert F, Wichmann C, Sigrist SJ, Levitan ES, Wu C. J Neurosci. 2014 Jun 18;34(25):8474-87.
