![All lanes : Anti-CACNA1C antibody [S57-46] (ab84814) at 1 µg/mlLane 1 : Molecular weight markerLane 2 : Cell lysates prepared from DHPR alpha 1 transfected CHO cells](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/18981_DHPR-alpha-1-Primary-antibodies-ab84814-4.jpg)
All lanes : Anti-CACNA1C antibody [S57-46] (ab84814) at 1 µg/mlLane 1 : Molecular weight markerLane 2 : Cell lysates prepared from DHPR alpha 1 transfected CHO cells
ab84814 staining CACNA1C in human hippocampus tissue section by Immunohistochemistry (Bouin's fixative fixed paraffin embedded tissue sections). Tissue underwent heat mediate fixation in microwave and in citrate buffer. The primary antibody was used at 1/100 dilution. A Fluorophore conjugated goat anti-mouse was used as secondary at 1/50 dilution.
ab84814 staining CACNA1C in mouse brain tissue section by immunohistochemistry (Bouin's fixed paraffin embedded tissue section. Tissue underwent heat mediated fixation in microwave and in citrate buffer. The primary antibody was used at 1/100 dilution. A HRP conjugated secondary was used at 10 dilution.
ab84814 staining CACNA1C in rabbit heart tissue by Immunohistochemistry (Frozen sections).Tissue was fixed with paraformaldehyde, permeabilized using Triton X-100 and then incubated with ab84814 at a 1/100 dilution for 12 hours at 4°C. The secondary used was an Alexa-Fluor 555 conjugated goat anti-mouse monoclonal, used at a 1/500 dilution.See Abreview

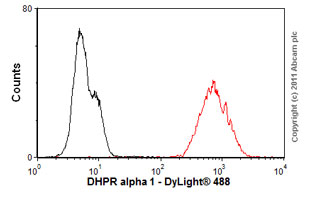

![Overlay histogram showing SH-SY5Y cells stained with ab84814 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab84814, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG2b [PLPV219] (ab91366, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive result in SH-SY5Y cells fixed with 4% paraformaldehyde (10 min)/permeabilized in 0.1% PBS-Tween for 20 min used under the same conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/18985_DHPR-alpha-1-Primary-antibodies-ab84814-17.jpg)
Overlay histogram showing SH-SY5Y cells stained with ab84814 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab84814, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG2b [PLPV219] (ab91366, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive result in SH-SY5Y cells fixed with 4% paraformaldehyde (10 min)/permeabilized in 0.1% PBS-Tween for 20 min used under the same conditions.
